武峰管道
 |
 |
| Nominal | Socket Type | |||||

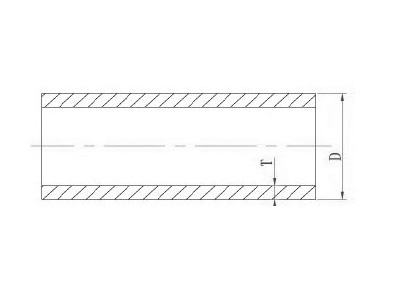

| SIZE | D | Toleran | T（min/mm） | |||
| S5 | S4 | S3.2 | S2.5 | |||
| 1/2" | 20.00 | +0.30 | 2.00 | 2.30 | 2.80 | 3.40 |
| 3/4" | 25.00 | +0.30 | 2.30 | 2.80 | 3.50 | 4.20 |
| 1" | 32.00 | +0.30 | 2.90 | 3.60 | 4.40 | 5.40 |
| 1-1/4" | 40.00 | +0.40 | 3.70 | 4.50 | 5.50 | 6.70 |
| 1-1/2" | 50.00 | +0.50 | 4.60 | 5.60 | 6.90 | 8.30 |
| 2" | 63.00 | +0.60 | 5.80 | 7.10 | 8.60 | 10.50 |
| 2-1/2" | 75.00 | +0.70 | 6.80 | 8.40 | 10.30 | 12.50 |
| 3" | 90.00 | +0.90 | 8.20 | 10.10 | 12.30 | 15.00 |
| 4" | 110.00 | +1.00 | 10.00 | 12.30 | 15.10 | 18.30 |
| 5" | 140.00 | +1.20 | 11.40 | 14.00 | 17.10 | 20.80 |
| 6" | 160.00 | +1.30 | 12.70 | 15.70 | 19.20 | 23.30 |
| 8" | 200.00 | +1.50 | 14.60 | 17.90 | 21.90 | 26.60 |
