1. Specification for erection of reinforcement processing shed on site:

鋼筋加工棚是施工現場內對鋼筋進行拉直、彎曲、焊接等鋼筋加工作業的一個場地。鋼筋加工棚的長和寬，一般會(huì )根據鋼筋加工數量和使用機械的多少確定加工棚的大小，一般情況有6*12m、9*12m、18*30m等幾種，可以根據施工實際情況，自行設計長與寬尺寸。鋼筋加工棚工作臺的布置也要合理，根據真實鋼筋加工流程來，還有加工前原材料鋼筋和加工結束后成品的存放，所以鋼筋加工棚的地面應高于施工場地地面30cm，防止雨水浸泡，用腳手管進行搭設時，應有地橫桿和斜撐，以保證加工棚的穩定性。

The reinforcement processing shed is a site for straightening, bending, welding and other reinforcement processing operations on the construction site. The length and width of the reinforcement processing shed are generally determined according to the number of reinforcement processing and the number of machines used. Generally, there are 6 * 12M, 9 * 12M, 18 * 30m and other types. The length and width dimensions can be designed according to the actual construction situation. The layout of the worktable of the reinforcement processing shed should also be reasonable. According to the real reinforcement processing process, as well as the storage of raw materials and finished products before processing and after processing, the ground of the reinforcement processing shed should be 30cm higher than the ground of the construction site to prevent rainwater immersion. When erecting with scaffold pipes, there should be ground cross bars and diagonal braces to ensure the stability of the processing shed.

2、工地鋼筋加工棚搭建細節：

2. Construction details of reinforcement processing shed on site:

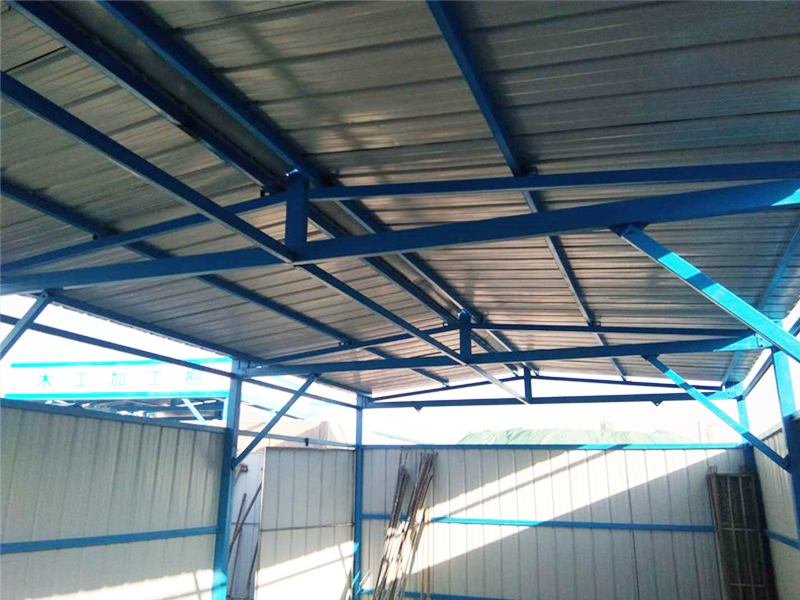

埃歐哲鋼筋加工棚采用國際標準鋼材制作，在現場利用扣件將多根鋼管扣接搭設成加工棚的整體式鋼結構，再設置斜撐和雙層防砸結構，校驗鋼結構強度是否符合設計要求，在欄桿上鉤掛標語橫幅，整個鋼筋加工棚施工完畢標準化設計。全拼裝式，快速組裝，拆卸簡單，方便運輸，型材及配件規格可按需求來定制。同時地面也需要硬化，立柱基礎澆筑700*700*700mm混凝土，預埋300*300*12mm鋼板。

The eozhe reinforcement processing shed is made of international standard steel. Firstly, a number of steel pipes are buckled and erected on site to form an integral steel structure of the processing shed, and then diagonal bracing and double-layer anti smashing structure are set to verify whether the strength of the steel structure meets the design requirements. Safety slogans and banners are hung on the railings, and the construction of the whole reinforcement processing shed is completed with standardized design. Fully assembled, quick assembly, simple disassembly and convenient transportation. The specifications of profiles and accessories can be customized according to demand. At the same time, the ground also needs to be hardened. The column foundation is poured with 700 * 700 * 700mm concrete and embedded with 300 * 300 * 12mm steel plate.

3、工地鋼筋加工棚需注意事項：

3. Precautions for reinforcement processing shed on site:

1.一般情況下，鋼筋加工棚都在塔吊的吊運范圍內，否則鋼筋吊動不方便，同時必須設置雙層硬質防護，棚的具體尺寸要根據實際情況來定。

1. Generally, the reinforcement processing shed is within the lifting range of the tower crane, otherwise it is inconvenient to lift the reinforcement. At the same time, double-layer hard protection must be set, and the specific size of the shed should be determined according to the actual situation.

2.防護棚的頂有二層的，上面的隔層上鋪模板，下面一層鋪二層竹芭片子，二層之間間距500 mm。

2. If there are two layers on the top of the protective shed, the upper compartment is paved with formwork, and the lower layer is paved with two layers of bamboo flakes, with a spacing of 500 mm between the two layers.

3.工具式鋼筋加工棚需在醒目處掛操作規程圖牌和宣傳用語的橫幅，圖牌的尺寸為：寬×高=2000mm×1000mm，橫幅寬度宜為1m。

3. The tool type reinforcement processing shed shall hang the operation specification drawing board and the banner of safety publicity language at the eye-catching place. The size of the drawing board is: width × Height = 2000mm × 1000mm, and the width of the banner should be 1m.

4.加工車間地面需硬化，宜選用砼地面。

4. The ground of the processing workshop needs to be hardened, and the concrete ground should be selected.

5.內部有滅火器、鋼筋加工設備、有照明系統

5. There are fire extinguishers, reinforcement processing equipment and lighting system inside

6.加工車間地面需硬化，宜選用砼地面。

6. The ground of the processing workshop needs to be hardened, and the concrete ground should be selected.

7. 南方地區，如遇臺風應采取防風措施，可設置纜風繩

7. In the south, in case of typhoon, windproof measures shall be taken, and wind ropes can be set
